Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® B860 Chipset
2 x PCIe 4.0 x1 slots
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Rear USB (Total 6 ports)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)**
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A.
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

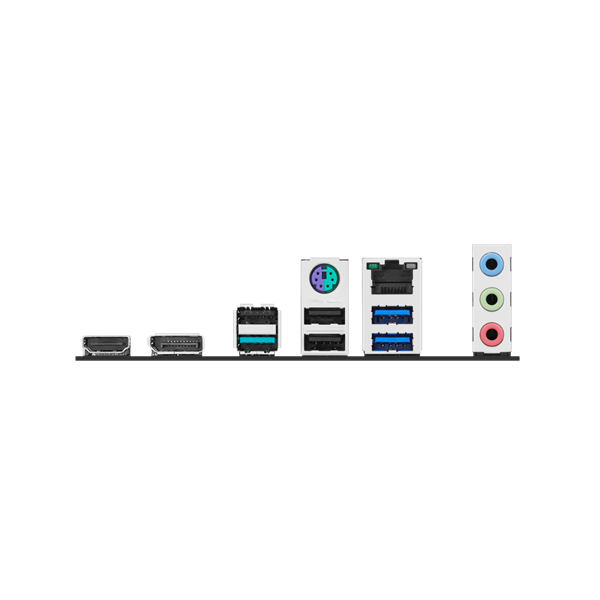

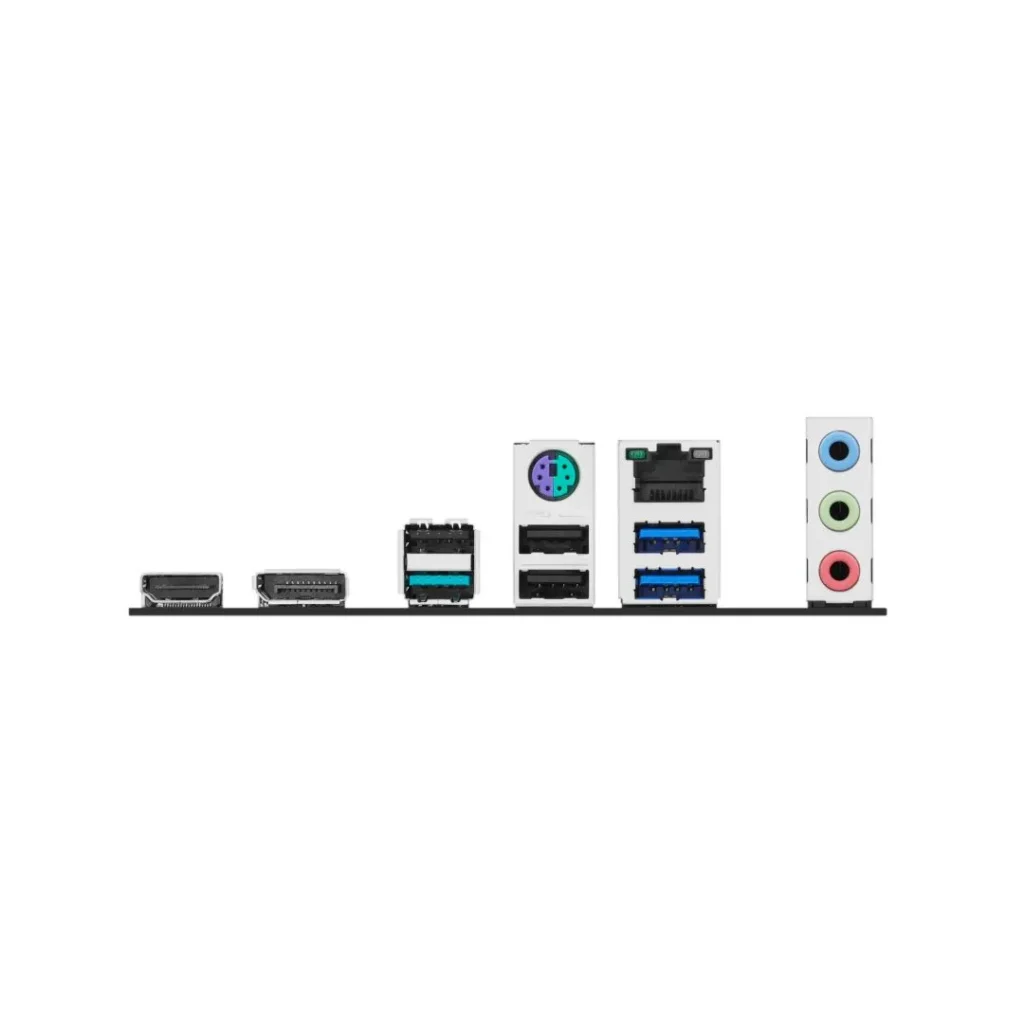

1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
ASUS 5X PROTECTION III
– DIGI+VRM
– LANGuard
– Overvoltage protection
– SafeSlot Core+
– Stainless-steel back I/O
ASUS Q-Design
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen2 headers
ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
256(128+128) Mb Flash ROM, UEFI AMI BIOS

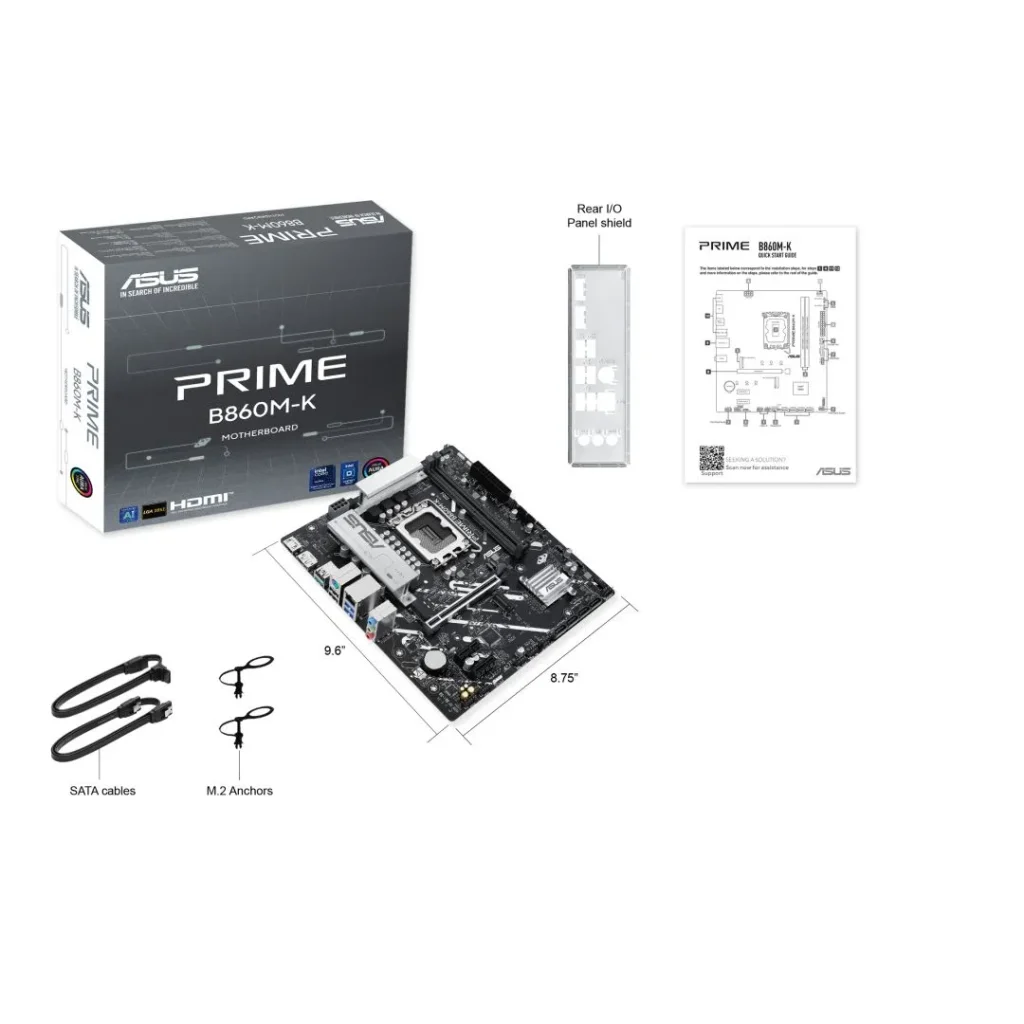

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 anchor package
Documentation
1 x Quick start guide
Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Technikai adatok:
Audio: 7.1 HD
Chipset gyártó: Intel
Foglalat típusa: S1851
Form Factor: mATX
Grafikus foglalat: PCI-Ex16
Gyártó: ASUS
VGA integrált: Nincs
Kivitel: Dobozos
LAN1: 100/1000/2500 Mb/s
Max memória: 128,0000000
Memória foglalatok száma: 2,0000000
Memória órajel: 5200,0000000
Memória típus: DDR5
PCI foglalatok száma: 0,0000000
PCI-E foglalatok száma: 2,0000000
PS/2 Port: 1,0000000
Raid: Igen
SATA III: 4,0000000
USB 2.0: 7,0000000
USB 3.0: 0,0000000
Wireless: Nincs
USB 3.1: 6,0000000
D-Sub: Nincs
HDMI: Van
Display Port: Van
Thunderbolt: Nincs
Soros port: Nincs
Párhuzamos port: Nincs
DVI: Nincs
Quad Channel: Nincs
M.2 foglalat: Van
