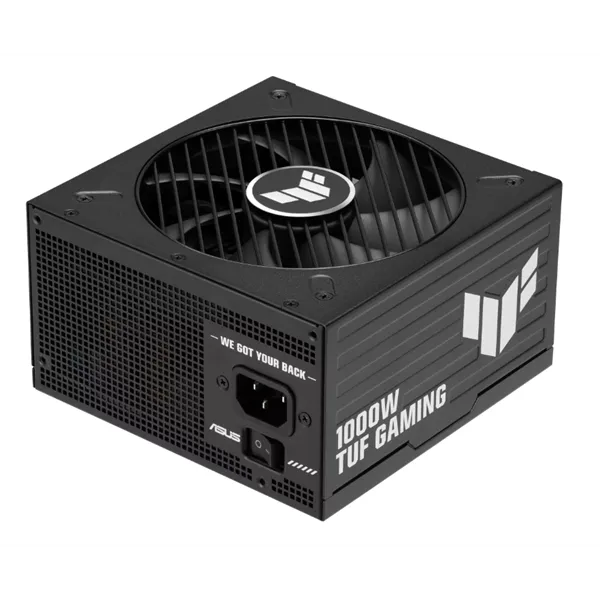

ASUS Tápegység TUF Gaming 1000W 80+ Platinum moduláris Gen 5.1

Model

TUF-GAMING-1000P

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 40°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 83.3A 0.3A 3A

Combined Load

125W 125W 1000W 3.6W 15W

Total Output

1000W

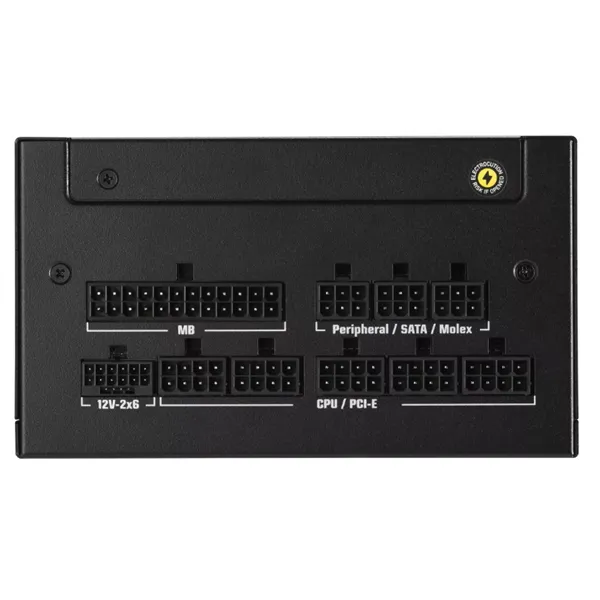

Cable Connectors

MB 20+4-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (12V-2×6)
PCI-E 6+2-pin x 3
SATA x 6
PERIPHERAL x 3

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU 1-to-1 Cable x 2 (750mm)
PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (675mm)
PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 3 (675mm)
SATA 1-to-3 Cable x 2 (400+150+150mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

Weight

1.51 kg (single PSU)

0dB Technology

No
