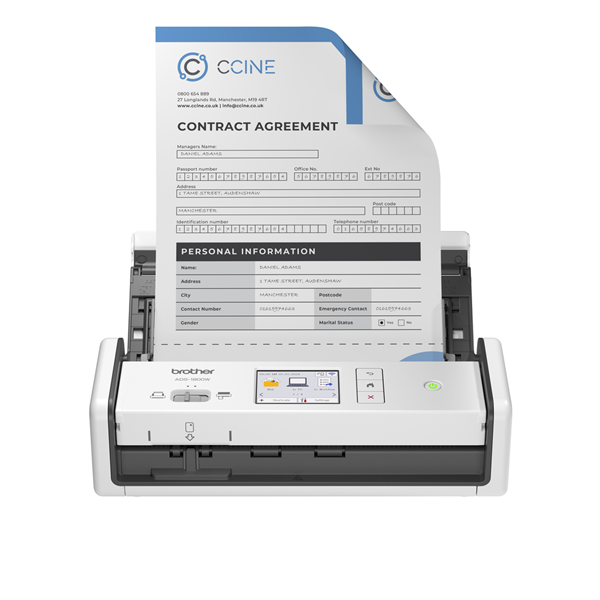

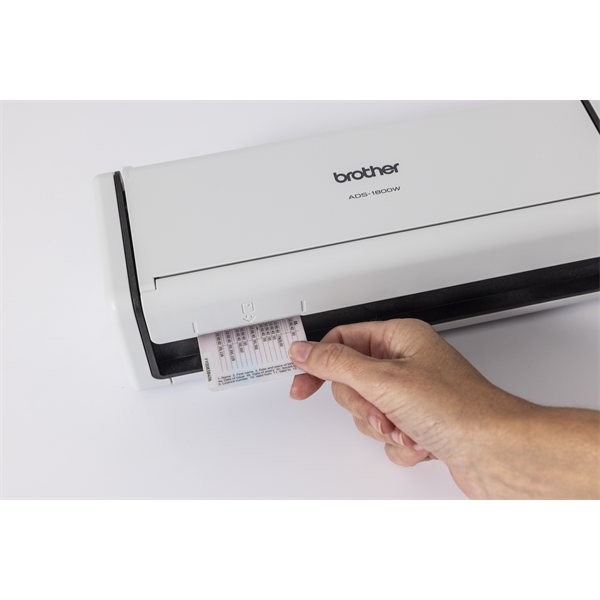

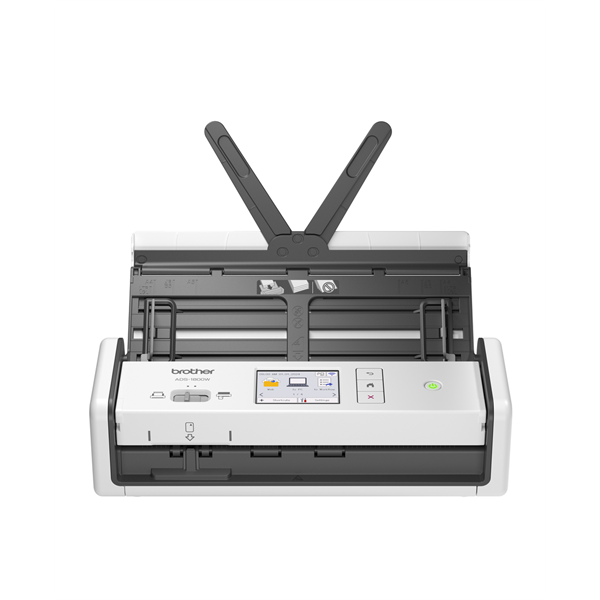

BROTHER Mobile szkenner ADS1800TC1, A4, 30 oldal/perc, USB/USB-C/Wifi ADF, duplex, 600dpi,

140 160 Ft

Garancia: 2 év

Cikkszám: ADS1800WTC1 Kategória: Brand:
Leírás

General Specifications






















































Memory Capacity


Standard


ADS-1300: 256 MB


ADS-1350W/ADS-1800W: 512 MB


Power Source


DC


5V, 3A *1


AC Adapter *2




  • INPUT: AC 100 to 240 V 50/60 Hz



  • OUTPUT: DC 5V, 3A

Touchscreen LCD (Liquid Crystal Display) *3

(ADS-1800W)


Touchscreen 71.1 mm TFT Colour LCD


Power Consumption *4 *5


Scanning *6


ADS-1300




  • AC: Approximately 11 W



  • DC: Approximately 9 W





ADS-1350W




  • AC: Approximately 11 W



  • DC: Approximately 9 W





ADS-1800W




  • AC: Approximately 12 W



  • DC: Approximately 10 W





Ready


ADS-1300




  • AC: Approximately 5 W



  • DC: Approximately 4 W





ADS-1350W




  • AC: Approximately 5.5 W



  • DC: Approximately 4.4 W





ADS-1800W




  • AC: Approximately 6.4 W



  • DC: Approximately 5.2 W





Sleep


ADS-1300




  • AC: Approximately 1.3 W



  • DC: Approximately 1 W





ADS-1350W




  • AC: Approximately 1.4 W



  • DC: Approximately 1 W





ADS-1800W




  • AC: Approximately 1.5 W



  • DC: Approximately 1.1 W





Power Down


ADS-1300




  • AC: Approximately 0.1 W



  • DC: Approximately 0.1 W





ADS-1350W




  • AC: Approximately 0.1 W



  • DC: Approximately 0.1 W





ADS-1800W




  • AC: Approximately 0.1 W



  • DC: Approximately 0.1 W




Dimensions









1: 85 mm


2: 288 mm


3: 205 mm


4: 211 mm


5: 101 mm


Weights


ADS-1300: Approximately 1.37 kg


ADS-1350W: Approximately 1.37 kg


ADS-1800W: Approximately 1.42 kg


Temperature


Operating


5°C to 35°C


Storage


0°C to 40°C


Humidity


Operating


20% to 80%


Storage


10% to 90%


ADF (Automatic Document Feeder)


Up to 20 sheets


(Paper: 80 g/? A4/Letter size)


*1


USB Type-C is supported.


*2


The AC Adapter is an optional accessory and is available on the Brother website by searching for part number LK-1001C.


*3


Measured diagonally.


*4


Measured when the machine is connected to your computer.


*5


When the USB port is connected.


*6


When using 2-sided (duplex) colour scanning at resolutions 300 x 300 dpi.


Document Specifications
























Paper Type


Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Non Carbon Paper, Receipt, Recycled Paper, Business Card, Plastic Card


Document Size


Width


50.8 mm to 215.9 mm


Length *1


70 mm to 355.6 mm


Carrier Sheet Restrictions


Width


Documents narrower than 50.8 mm


Length


Documents shorter than 70 mm


Thickness


Pages thinner than 0.08 mm


*1


Up to 5000 mm when using the Long Paper function.


Scanner Specifications










































Colour/Monochrome


Yes/Yes


TWAIN Compliant


Windows


Windows 10 / Windows 11


WIA Compliant


Windows


Windows 10 / Windows 11

ICA Compliant

(ADS-1300)


Mac


macOS v11.x / macOS 12.x / macOS 13.x


Colour Depth


Input


48 bit colour processing


Output


24 bit colour processing


Resolution


Interpolated


Up to 1200 x 1200 dpi


Optical


Up to 600 x 600 dpi


Scanning Width


Up to 215.9 mm


Greyscale


256 levels


Max. Speed


For detailed specifications, visit www.brother.com.


Direct Scan Feature (Scan to USB) Specifications










Compatible Media


USB flash drive *1


Interface


Interface USB 2.0 Hi Speed


*1


USB Mass Storage standard up to 128 GB


Supported formats: FAT12/FAT16/FAT32/exFAT


Interface Specifications










USB


USB 3.2 Gen1


Use a USB Type-A to USB Type-C Cable *1 or a USB Type-C to USB Type-C Cable that supports USB Super Speed or USB 2.0 High speed and is no more than 2.0 metres long.

Wireless LAN

(ADS-1350W/ADS-1800W)


2.4 GHz band


IEEE 802.11b/g/n (Infrastructure Mode)


IEEE 802.11g/n (Wi-Fi Direct) (ADS-1800W)


IEEE 802.11g/n (Wireless Direct) (ADS-1350W)


*1


USB Type-A to USB Type-C Cables do not support USB power.


Network Specifications










Wireless Network Security


WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)


Setup Support Utility


WPS


Supported Protocols and Security Features



















Protocol (IPv4)



  • ADS-1350W

    DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, SNMPv1/v2c/v3, ICMP, Web Services (Scan), SNTP Client


  • ADS-1800W

    DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, SMTP Client, FTP/SFTP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, ICMP, Web Services (Scan), SNTP Client


Protocol (IPv6)



  • ADS-1350W

    RA, DNS Resolver, mDNS, LLMNR responder, ICMPv6, Web Services (Scan), SNTP Client, SNMPv1/v2c/v3


  • ADS-1800W

    RA, DNS Resolver, mDNS, LLMNR responder, SMTP Client, FTP Client, CIFS Client, HTTP/HTTPS server, ICMPv6, Web Services (Scan), SNTP Client, SNMPv1/v2c/v3


Network Security (Wireless)



  • ADS-1350W

    SSL/TLS (HTTPS), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)


  • ADS-1800W

    SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3, SSH, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)

Network Security (Email)

(ADS-1800W)


SMTP-AUTH, SSL/TLS (SMTP)


Wi-Fi Certification



  • ADS-1350W

    Wi-Fi CERTIFIED™, WPA3™-Enterprise/Personal, Wi-Fi Protected Setup™ (WPS)


  • ADS-1800W

    Wi-Fi CERTIFIED™, WPA3™-Enterprise/Personal, Wi-Fi Protected Setup™ (WPS) , Wi-Fi Direct®


Computer Requirements Specifications


































Computer Platform & Operating System Version Supported PC Software Functions PC Interface Processor Minimum Speed Hard Disk Space to Install
For Drivers For Applications

Windows Operating System


Windows 10


Windows 11


Scanning


USB


WLAN (Wi-Fi) *1


32bit (x86) or 64bit (x64) processor


70 MB


Drivers, Installer and Software:


1.4 GB


Mac Operating System


macOS v11.x


macOS v12.x


macOS v13.x

64bit processor

30 MB


Drivers and Software:


600 MB

További információk
Tömeg 1,7 kg
Készlet

Elérhető

Brand

Brother
