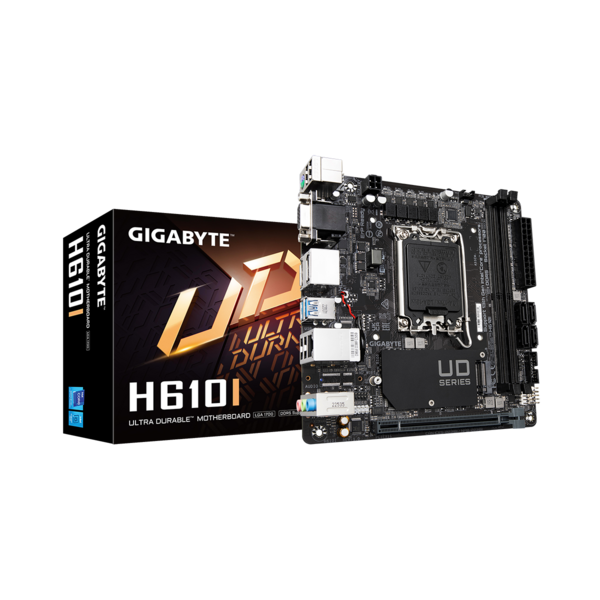

GIGABYTE Alaplap S1700 H610I INTEL H610, mini-ITX

52 170 Ft

Audio: 7.1 HD
Chipset gyártó: Intel
Foglalat típusa: S1700
Form Factor: m-ITX
Grafikus foglalat: PCI-Ex16
Gyártó: GIGABYTE
VGA integrált: Nincs
Kivitel: Dobozos
LAN1: 10/100/1000 Mb/s
Max memória: 64,0000000
Memória foglalatok száma: 2,0000000
Memória órajel: 5600,0000000
Memória típus: DDR5
PCI foglalatok száma: 0,0000000
PS/2 Port: 1,0000000
Raid: Nem
SATA III: 4,0000000
USB 2.0: 6,0000000
USB 3.0: 0,0000000
Wireless: Nincs
USB 3.1: 4,0000000
D-Sub: Van
HDMI: Van
Display Port: Van
Thunderbolt: Nincs
Soros port: Nincs
Párhuzamos port: Nincs
DVI: Nincs
Quad Channel: Nincs
M.2 foglalat: Van
Garancia: 3 év

Cikkszám: H610I Kategória: Brand:
Leírás
  • CPU

    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    * Please refer to "CPU Support List" for more information.
    L3 cache varies with CPU

  • Chipset

    Intel® H610 Express Chipset

  • Memory

    13th Generation Intel® Core™ i9/i7 Processors:
    – Support for DDR5 5600/5200/4800/4400 MT/s memory modules
    13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
    – Support for DDR5 4800/4400 MT/s memory module
    2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:
    – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.

    – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3.

    – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

    * Support for DisplayPort 1.2 version.

    (Graphics specifications may vary depending on CPU support.)
    Support for up to 3 displays at the same time

  • Audio

    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    Intel® GbE LAN chip (1 Gbps/100 Mbps)

  • Expansion Slots

    1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)

  • Storage Interface

    Chipset:
    – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
    – 4 x SATA 6Gb/s connectors

  • USB

    Chipset:
    – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    – 4 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    – 2 x USB 2.0/1.1 ports available through the internal USB header

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x serial port header
    1 x Clear CMOS jumper
    1 x chassis intrusion header

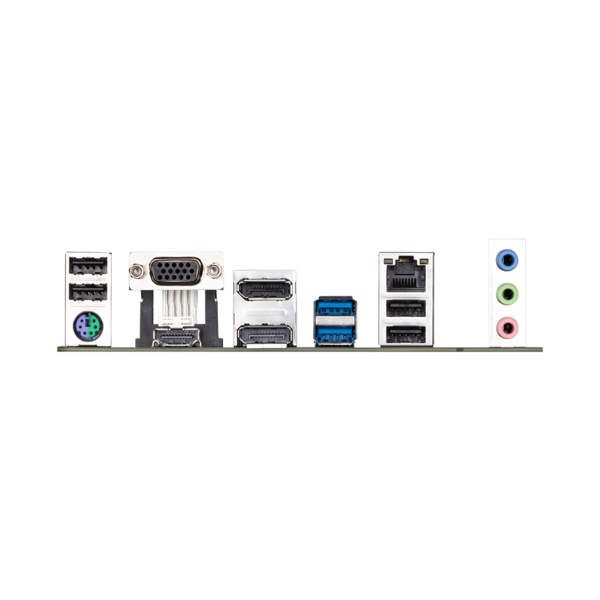

  • Back Panel Connectors

    1 x PS/2 keyboard/mouse port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x D-Sub port
    2 x DisplayPorts
    1 x HDMI port
    1 x RJ-45 port
    3 x audio jacks

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for APP Center

    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    – @BIOS
    – EasyTune
    – Ambient LED
    – Smart Backup
    – System Information Viewer
    Support for Q-Flash
    Support for Xpress Install

  • Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Operating System

    Support for Windows 11 64-bit
    Support for Windows 10 64-bit

  • Form Factor

    Mini-ITX Form Factor; 17.0cm x 17.0cm

További információk
Tömeg 0,6 kg
Videochip gyártó

Intel

Foglalat

LGA1700

Memória foglalat

DDR5

Készlet

Elérhető

Brand

Gigabyte
