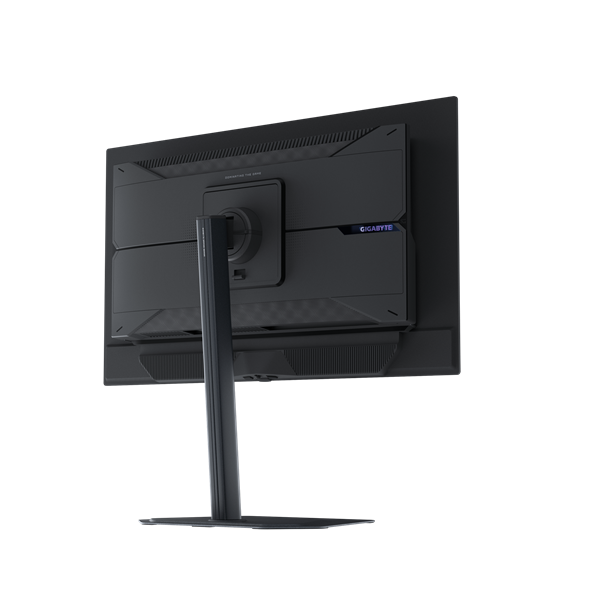

GIGABYTE OLED Monitor 27″ MO27U2 3840×2160, 2xHDMI/Displayport/4xUSB

Panel Size (diagonal)

27" OLED

Display Viewing Area (HxV)

589.97 x 332.93 mm

Panel Backlight/ Type

QD-OLED

Display Surface(non-glare/ glare)

Anti-Reflection

Color Saturation

99% DCI-P3

True Resolution

3840 x 2160 (UHD)

Pixel Pitch

0.153(H) x 0.153(V) mm

Brightness

250 cd/m2 (Typ, SDR APL 100%); 1000 cd/m2 (Typ, HDR APL 3%)

Contrast Ratio

1.5M:1

Viewing Angle

178°(H)/178°(V)

Display Colors

10bit (1.07B)

Response Time

0.03ms GTG

Refresh Rate

240Hz

HDR

VESA DisplayHDR True Black 400

VESA Certified ClearMR

ClearMR 13000

Flicker-free

Yes

Factory Calibration

Yes, ?E< 2

Connectivity

2 x HDMI 2.1
1 x Displayport 1.4
1 x USB Type-C (Alternate Mode; Upstream port; Power Delivery up to 18W)
2 x USB 3.2 Downstream ports
1 x USB 3.2 Upstream port
1 x Earphone Jack

Earphone Jack

Yes

Microphone Jack

Yes

Speaker

5W x 2

Unique Features

Tactical Switch 2.0
OSD Sidekick *
Black Equalizer 2.0
Ultra Clear
VRR Anti-Flicker
Flash Dimming
Dashboard
Crosshair
Timer
Counter
Night Vision
Eagle Eye
PiP/PbP
Auto-Update
KVM
6 axis Color Control
Apply Picture Mode
HDMI-CEC

Power Type

Power Board Build-in

Power Consumption

45W**

Power Saving Mode

<0.5W

Power Off Mode

<0.3W

Voltage

AC 100-240V ~ 50/60Hz

Tilt(angle)

-5°~+21°

Swivel(angle)

±15°

Pivot(angle/direction)

-0°~+90°

Height Adjustment (mm)

130 mm

VESA Wall Mounting(mm)

100*100 mm

Kensington lock

Yes

Phys. Dimension with Stand(WxHxD)

610.3 x 499.54 x 187.5 mm

Phys. Dimension w/o stand  (WxHxD)

610.3 x 356.4 x 57.2 mm

Box Dimension (WxHxD)

860*480*160 mm

Net Weight with stand (Esti.)

7.11 kg

Net Weight without stand (Esti.)

5.48 kg

Gross Weight (Esti.)

11.3kg

Accessories

Power cable/HDMI 2.1 cable/DP cable/USB cable/QSG/Warranty card/Color calibration test report

Note

*To enable OSD Sidekick, it requires connection between PC and monitor with USB (A-Male to B-Male) cable.
**The test condition follows CEC standards.
