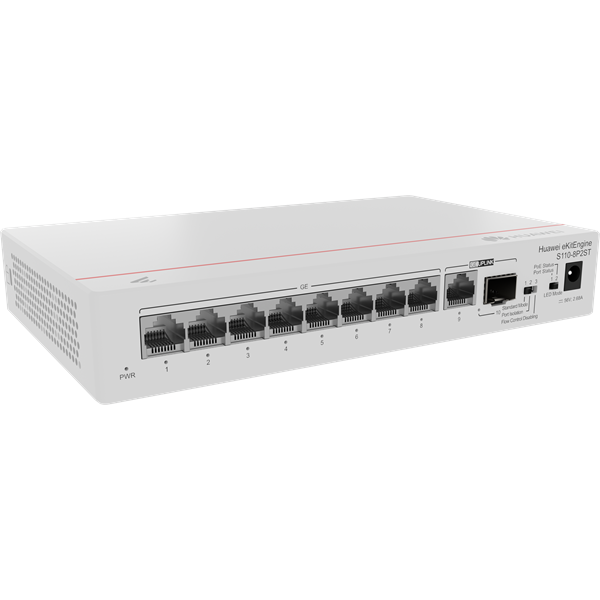

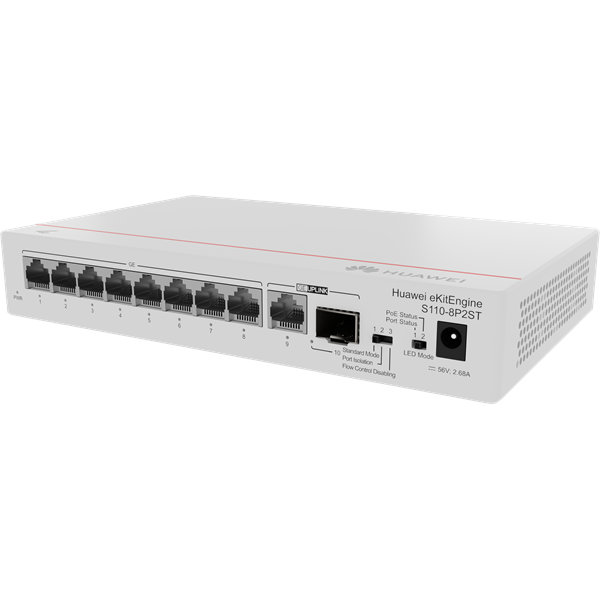

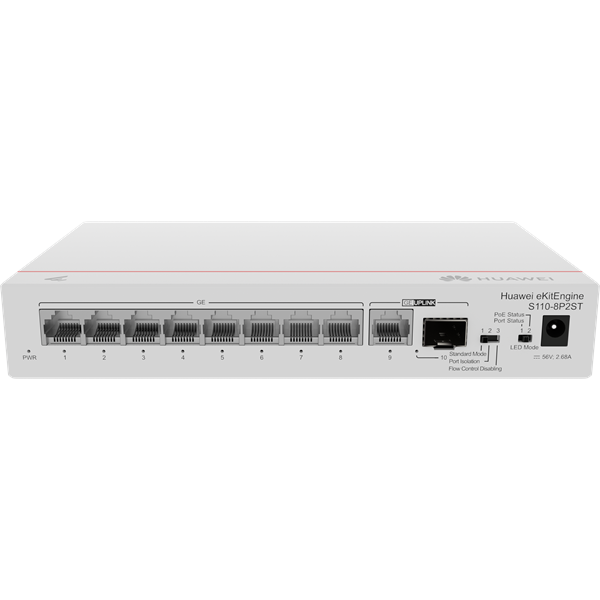

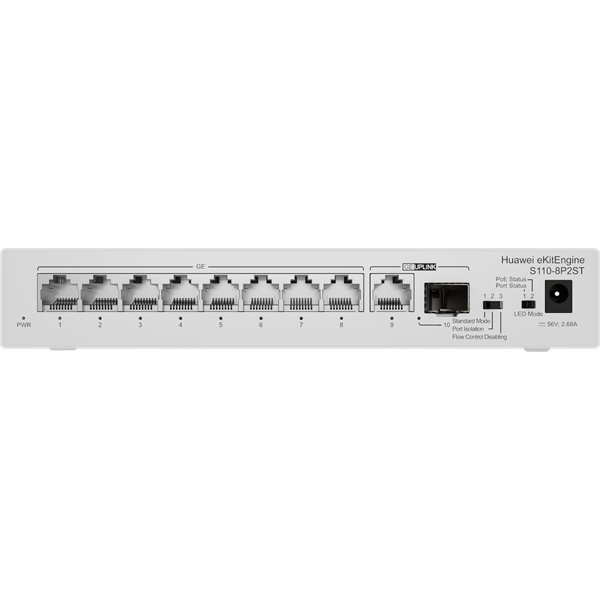

Huawei eKit Switch 8x1000Mbps (124W POE+) + 1x1000Mbps Uplink + 1x1GE (SFP), Nem menedzselhető, Asztali – S110-8P2ST
53 960 Ft
Gyártó: Huawei eKit
Menedzselhető: Nincs
PoE (Power over Ethernet): Van
Rack-be szerelhető: Nincs
SFP port: 1,0000000
Switch típus: Fixed port
Portok száma: 10,0000000
Port típusa: 1Gb Réz
Áteresztő képesség: 14,8800000
Switching kapacitás: 20,0000000
Garancia: 3 év
Leírás
| Integrated fixed device | Y |
| Dimensions without packaging (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.) |
| Dimensions with packaging (H x W x D) | 150.0 mm x 270.0 mm x 200.0 mm (5.91 in. x 10.63 in. x 7.87 in.) |
| Chassis height | 0.8 |
| Installation type | Desk mounting,Wall mounting |
| Weight without packaging | 1.11 (2.45) |
| Weight with packaging | 1.46 (3.22) |
| Typical power consumption | 11 |
| Typical heat dissipation | 37.53 |
| Maximum power consumption | Without PoE: 11 W Full PoE load: 155 W (PoE: 124 W) |
| Maximum heat dissipation | – Without PoE: 37.53 – Full PoE load: 528.88 |
| Static power consumption | 3 |
| 100% power consumption | 11 |
| MTBF | 78.77 |
| MTTR | 2 |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) | Noise-free (no fans), < 30 |
| Noise at high temperature (acoustic power) | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Maximum number of physical ports on the entire device | 10 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 0 |
| Maximum number of 5GE ports | 0 |
| Maximum number of 2.5GE ports | 0 |
| Maximum number of GE ports | 10 |
| Maximum number of FE ports | 10 |
| Dedicated stack port | Not supported |
| Redundant power supply | Not supported |
| Long-term operating temperature | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude | 0–5000 m (0–16404 ft.) |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage | Power adapter input: 170–240 V AC; 50/60 Hz Power adapter output: 56 V DC |
| Input voltage range | Power adapter input: 170–264 V AC; 47–63 Hz |
| Maximum input current | 2.68 A |
| CPU | – |
| Memory | – |
| Flash memory | – |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| Hardware real-time power detection | Not supported |
| Dying gasp | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Complete device sleeping | Not supported |
| Service port surge protection | Common mode: ±4 kV |
| Power supply surge protection | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Maximum PoE power consumption | 124 |
| PoE+ power interfaces | 8 |
| PoE++ power interfaces | – |
| Full load PoE power consumption 15.4W (802.3af) | 8 |
| Full load PoE power consumption 30W (802.3at) | 4 |
| Full load PoE++ power consumption 60W (802.3bt) | – |
| Full load PoE++ power consumption 90W (802.3bt) | – |
| Certification | EMC certification Safety certification Manufacturing certification |
További információk
| Tömeg | 1,57 kg |
|---|---|
| Készlet |
Elérhető |
| Brand |
Huawei eKit |
