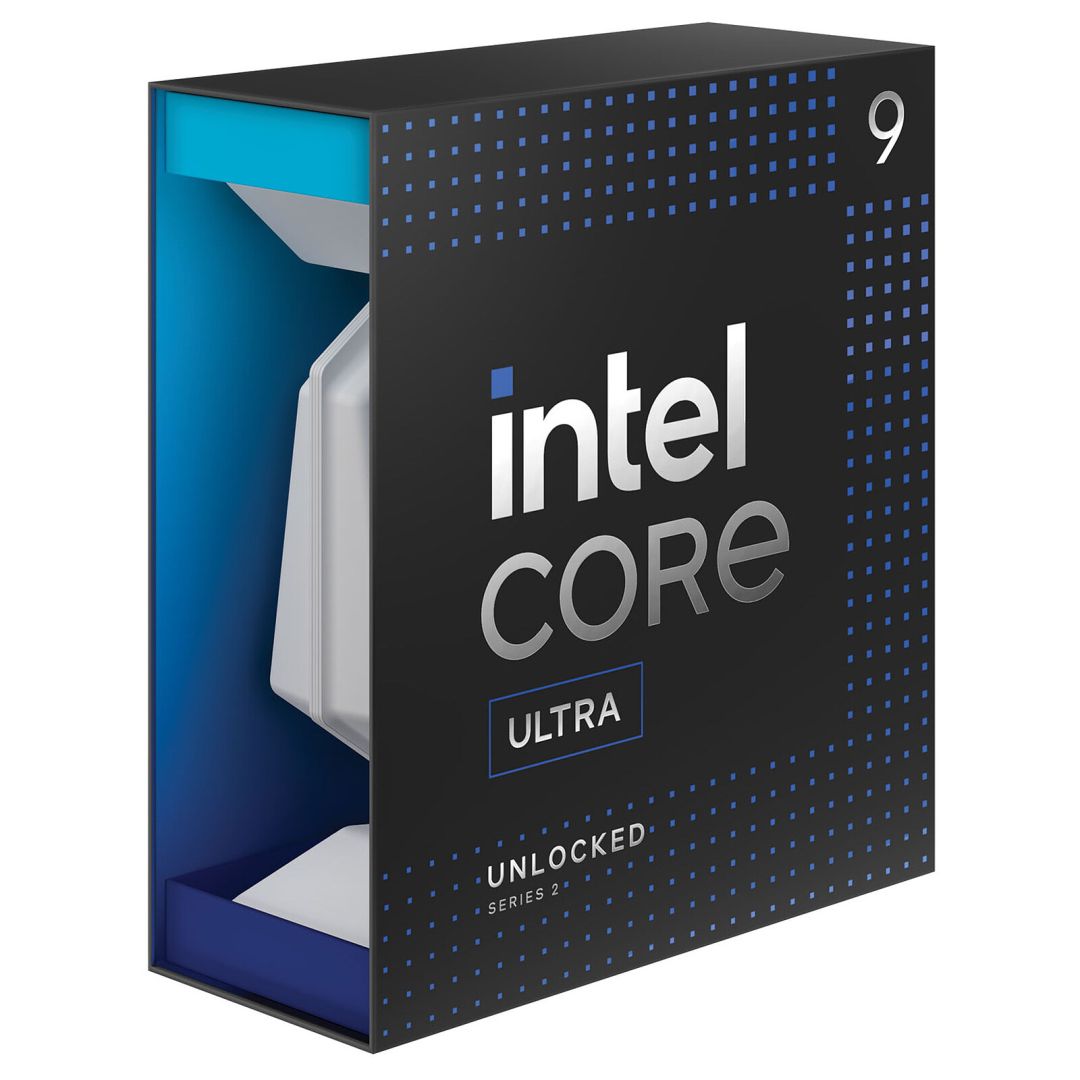

CPU Intel s1851 Core Ultra 9 285K – 3,2 GHz

Product Collection

Intel® Core™ Ultra Processors (Series 2)

Code Name

Products formerly Arrow Lake

Vertical Segment

Desktop

Processor Number Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors.’>

5.7 GHz

Intel® Thermal Velocity Boost Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors.’>

5.5 GHz

Efficient-core Max Turbo Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors.’>

3.7 GHz

Efficient-core Base Frequency For SKU specific use condition information, see PRQ report.
For current use condition information, see Intel UC (CNDA site)*.’>

PC/Client/Tablet, Workstation

Datasheet

View now

Memory Specifications

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 6400 MT/s

Maximum Memory Speed

6400 MHz

Max # of Memory Channels

2

ECC Memory Supported ^‡ ‡” data-toggle=”modal” data-title=”GPU Name^‡” data-target=”.upe-modal” data-search-title=”Find products with GPU Name^‡” data-search-icon=”true” data-search-href=”” data-keyboard=”true” data-description=”Processor Graphics indicates graphics processing circuitry integrated into the processor, providing the graphics, compute, media, and display capabilities.

Intel® Arc™ graphics only available on select V-Series Intel® Core™ Ultra processor-powered systems with qualifying system thermal design or H-series Intel® Core™ Ultra processor-powered systems with at least 16GB of system memory in a dual-channel configuration. OEM enablement required. Other Intel® Core™ Ultra processor-powered system configurations feature Intel® Graphics. Check with OEM or retailer for system configuration details.

Intel® Iris® Xe Graphics only: to use the Intel® Iris® Xe brand, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel® UHD brand.”>

Intel® Graphics

Graphics Base Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors.’>

2 GHz

GPU Peak TOPS (Int8)

8

Graphics Output

DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

X^e-cores

4

Max Resolution (HDMI)^‡

8K @ 60Hz

Max Resolution (eDP – Integrated Flat Panel)‡

4K @ 60Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3

Intel® Quick Sync Video

Yes

# of Displays Supported ^‡

4

Device ID

0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Yes

NPU Specifications

NPU Name^‡

Intel® AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported by NPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision

4

Max # of DMI Lanes

8

Intel® Thunderbolt™ 4

Yes

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations ^‡

24

Package Specifications

Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2020A

Max Operating Temperature

105 °C

Advanced Technologies

Intel® Volume Management Device (VMD)

Yes

Intel® Gaussian & Neural Accelerator

3.5

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Thermal Velocity Boost

Yes

Intel® Turbo Boost Max Technology 3.0 ^‡ ‡” data-toggle=”modal” data-title=”Intel® Turbo Boost Technology ^‡” data-target=”.upe-modal” data-search-title=”Find products with Intel® Turbo Boost Technology ^‡” data-search-icon=”true” data-search-href=”” data-keyboard=”true” data-description=”Intel® Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.”>

2.0

Intel® 64 ^‡

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Security & Reliability

Intel vPro® Eligibility ^‡ Intel vPro® Enterprise: Commercial platform offering the full set of security, manageability, and stability features for any given Intel processor generation, including Intel® Active Management Technology

Intel vPro® Essentials: Commercial platform offering a subset of Intel vPro® Enterprise features, including Intel® Hardware Shield and Intel® Standard Manageability

‘>

Intel vPro® Enterprise, Intel vPro® Platform

Intel® Threat Detection Technology (TDT)

Yes

Intel® Active Management Technology (AMT) ^‡ ‡” data-toggle=”modal” data-title=”Intel® Standard Manageability (ISM) ^‡” data-target=”.upe-modal” data-search-title=”Find products with Intel® Standard Manageability (ISM) ^‡” data-search-icon=”true” data-search-href=”” data-keyboard=”true” data-description=”Intel® Standard Manageability is the manageability solution for Intel vPro® Essentials platforms and is a subset of Intel® AMT with out-of-band management over Ethernet and Wi-Fi, but no KVM or new life cycle management features.”>

Yes

Intel® Remote Platform Erase (RPE) ^‡

Yes

Intel® One-Click Recovery ^‡

Yes

Intel® Hardware Shield Eligibility ^‡ Intel® Hardware Shield.’>

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® Total Memory Encryption – Multi Key

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® Trusted Execution Technology ^‡ ‡” data-toggle=”modal” data-title=”Execute Disable Bit ^‡” data-target=”.upe-modal” data-search-title=”Find products with Execute Disable Bit ^‡” data-search-icon=”true” data-search-href=”” data-keyboard=”true” data-description=”Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.”>

Yes

Intel® OS Guard

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Stable IT Platform Program (SIPP)

Technikai adatok:

Processzor gyártó: Intel
Processzor foglalat: Socket 1851
Processzor család: Core Ultra 9
Magok száma: 8,0000000
Órajel: 3700,0000000
L2 Cache: 40,0000000
Integrált GPU: Van
Fogyasztás: 125,0000000
