MERCUSYS Wireless Router N-es 300Mbps 1xWAN(100Mbps) + 2xLAN(100Mbps), MW302R

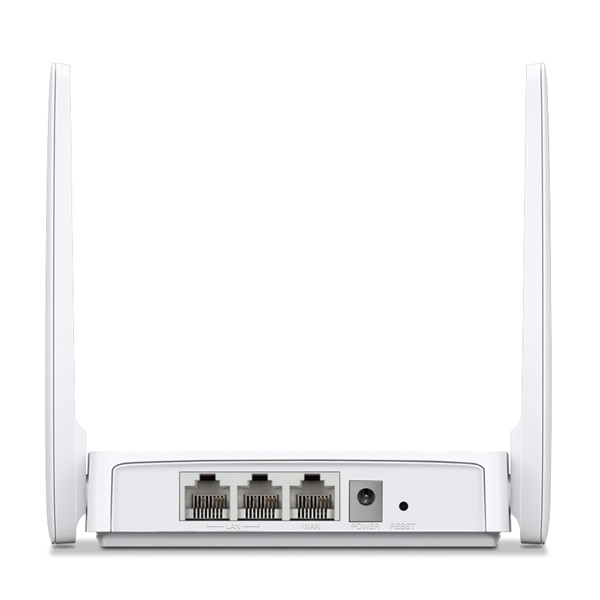

2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port

Reset Button


5V/0.6A

114 mm × 94 mm × 26 mm


2 * 5dBi

300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable

IEEE 802.11b/g/n

2.4-2.4835GHz

• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER

Enable/Disable Wireless Radio, WDS Bridging

WPA-PSK / WPA2-PSK

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Server

Virtual Server, UPnP, DMZ

Access Control, Local Management, Remote Management

IP and MAC Address Binding

2.4GHz Guest Network

IPv4, IPv6

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing

<20dBm (EIRP)
