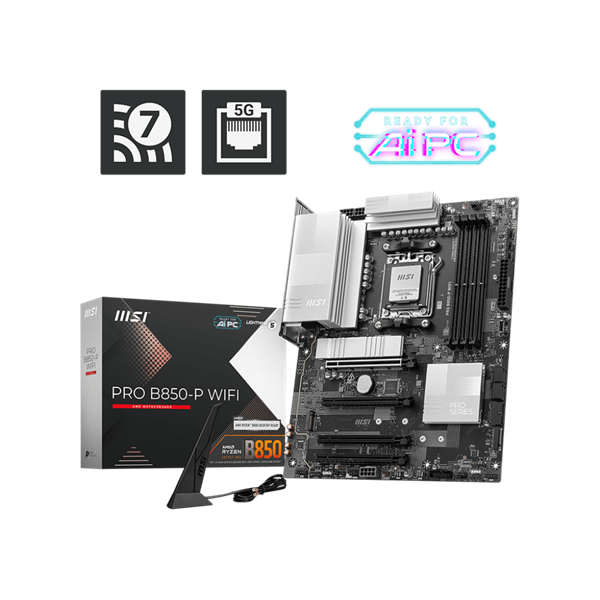

MSI Alaplap AM5 PRO B850-P WIFI AMD B850, ATX

Name: MSI Alaplap AM5 PRO B850-P WIFI AMD B850, ATX
Brand: Msi
SKU: B850-P WIFI
Availability: InStock

88 280 Ft

Audio: 7.1 HD
Chipset gyártó: AMD
Foglalat típusa: AM5
Form Factor: ATX
Grafikus foglalat: 4 x PCI-Ex16
Gyártó: MSI COMPUTER
VGA integrált: Nincs
Kivitel: Dobozos
LAN1: 100/1000/5000 Mb/s
Max memória: 256,0000000
Memória foglalatok száma: 4,0000000
Memória órajel: 7200,0000000
Memória típus: DDR5
PCI foglalatok száma: 0,0000000
PCI-E foglalatok száma: 0,0000000
Raid: Alaplapi
SATA III: 4,0000000
USB 2.0: 4,0000000
Wireless: Van
USB 3.1: 4,0000000
D-Sub: Nincs
HDMI: Van
Display Port: Nincs
Soros port: Nincs
Párhuzamos port: Nincs
DVI: Nincs
Quad Channel: Nincs
M.2 foglalat: Van
Származási ország: Kína
Garancia: 3 év

Add to compare

Cikkszám: B850-P WIFI Kategória: Alaplap Brand: Msi

Leírás
További információk

Leírás

Chipset	AMD B850
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO^TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
Audio	Realtek^® ALC897 7.1-Channel High Definition Audio
Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
