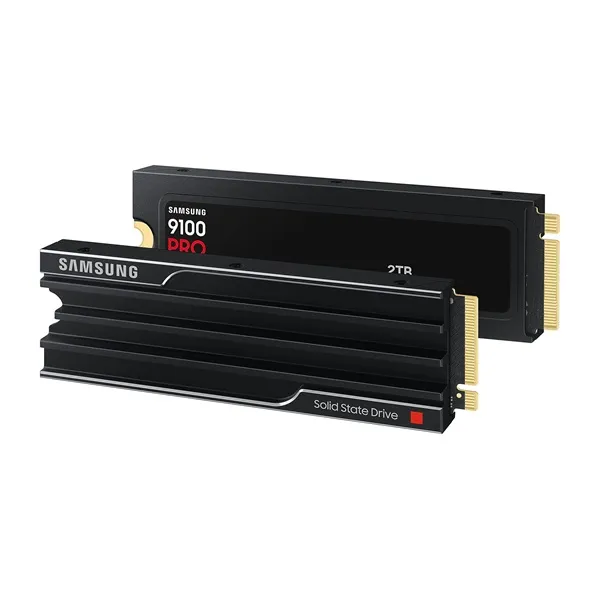

SAMSUNG 9100 PRO with Heatsink PCIe 5.0 NVMe™ M.2 SSD 2TB

• Application: Client PCs, Game Consoles


•


  ---


  Capacity: 2,000GB (1GB=1 Billion byte by IDEMA)

  * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)


•


  ---


  Form Factor: M.2 (2280)


•


  ---


  Interface: PCIe® 5.0 x4, NVMe™ 2.0


•


  ---


  Dimension (WxHxD): Max 80.15 x Max 25 x Max 8.88mm (with Heatsink)


•


  ---


  Weight: Max 30.0g Weight


•


  ---


  Storage Memory: Samsung V-NAND TLC


•


  ---


  Controller: Samsung in-house Controller


•


  ---


  Cache Memory: Samsung 2GB Low Power DDR4X SDRAM


  ---



• TRIM Support: Supported


•


  ---


  S.M.A.R.T Support: Supported


•


  ---


  GC (Garbage Collection): Auto Garbage Collection Algorithm


•


  ---


  Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)


•


  ---


  WWN Support: Not supported


•


  ---


  Device Sleep Mode Support: Yes


  ---


  .

• Sequential Read: Up to 14,700 MB/s

  * Performance may vary based on system hardware & configuration


•


  ---


  Sequential Write: Up to 13,400 MB/s

  * Performance may vary based on system hardware & configuration


•


  ---


  Random Read (4 KB, QD32): Up to 1,850,000 IOPS

  * Performance may vary based on system hardware & configuration


•


  ---


  Random Write (4KB, QD32): Up to 2,600,000 IOPS

  * Performance may vary based on system hardware & configuration


  ---



• Average Power Consumption (system level): Average: Read 8.1 W / Write 7.9 W*

  * Actual power consumption may vary depending on system hardware & configuration


•


  ---


  Power consumption (Idle): Typical 4.8 mW

  * Actual power consumption may vary depending on system hardware & configuration


•


  ---


  Power consumption (Device Sleep): Typical 4 mW

            * Actual power consumption may vary depending on system hardware & configuration

•


  ---


  Allowable Voltage: 3.3 V ± 5 % Allowable voltage


•


  ---


  Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)


•


  ---


  Operating Temperature: 0 – 70 °C Operating Temperature


•


  ---


  Shock: 1,500 G & 0.5 ms (Half sine)


  ---


  .

• Installation Kit: Not Available


  ---


  .

• Management SW: Magician Software for SSD management


  ---


  .

• 5-Year Limited Warranty or 1.200 TBW Limited Warranty


  ---


  .
