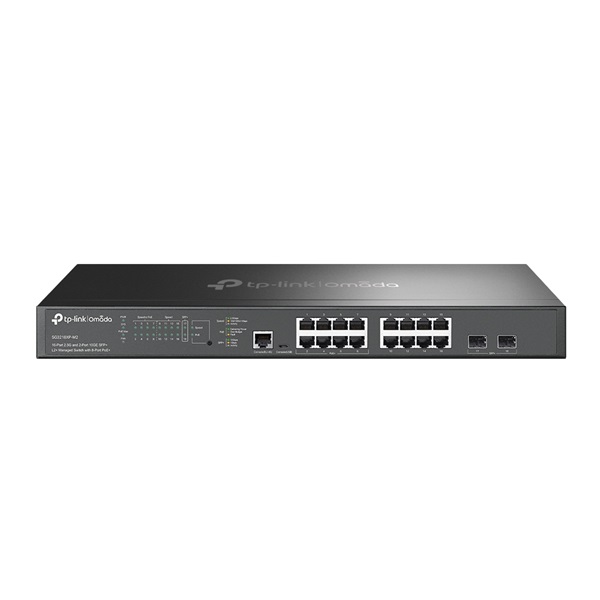

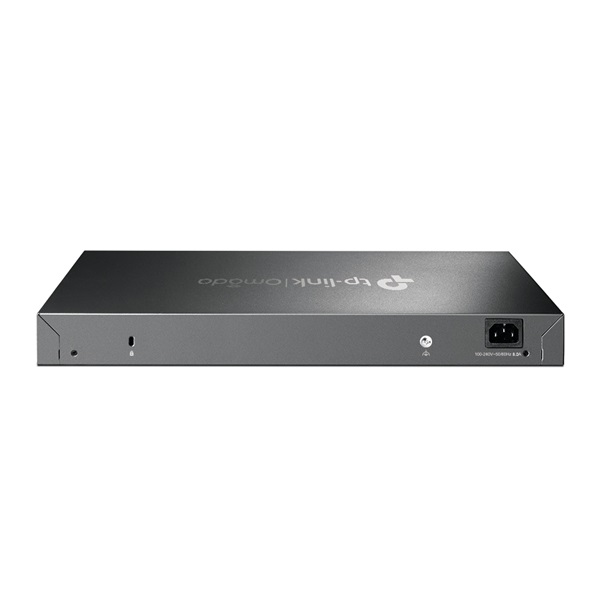

TP-LINK Switch 16×2.5Gbps(8xPOE+) + 2x10G SFP+ + 1xkonzol port + 1xMicro-USB port, Menedzselhető Rackes, SG3218XP-M2
275 980 Ft
Gyártó: TP-LINK
Menedzselhető: Van
PoE (Power over Ethernet): Van
Rack-be szerelhető: Van
SFP port: 2,0000000
Switch típus: Modular
Menedzselhetőség: Teljes
Routing / Switching: Layer 2
Portok száma: 18,0000000
Port típusa: 2.5Gb Réz
Származási ország: Kína
Garancia: 5 év
Leírás
| HARDVER JELLEMZŐK | |
|---|---|
| Csatlakozások | • 16× 2.5 Gbps RJ45 Ports • 2× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Ventilátorok száma | 2 |
| Hálózati tápegység | 100-240 V AC~50/60 Hz |
| PoE portok (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports(802.3at PoE): 8 Ports, up to 30 W per port • Power Budget: 240 W |
| Méretek (Sz x Mé x Ma) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Felszerelés | Rack Mountable |
| Max. áramfelvétel | 299.4 W (110V/60Hz)(with 240 W PD connected) |
| Max Heat Dissipation | 1021.64 BTU/h (110 V/60 Hz)(with 240 W PD connected) |
| MŰKÖDÉSI JELLEMZŐK | |
|---|---|
| Switching teljesítmény | 120 Gbps |
| Csomagtovábbítási sebesség | 89.28 Mpps |
| Fizikai (MAC) cím tábla | 16 K |
| Csomag puffer memória | 12 Mbit |
| Jumbo Frame | 9 KB |
| SZOFTVER JELLEMZŐK | |
|---|---|
| QoS (szolgáltatás minősége) | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
| L3 jellemzők | • 32 IPv4/IPv6 Interfaces • Static Routing – 48 static routes • Static ARP – 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay • DHCP L2 Relay |
| L2 és L2+ jellemzők | • Link Aggregation – static link aggregation – 802.3ad LACP – Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection – Port based – VLAN based • Flow Control – 802.3x Flow Control – HOL Blocking Prevention • Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Tx/Rx/Both |
| L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication • IGMP Authentication • MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile |
| További jellemzők | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| VLAN | • VLAN Group – Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 256 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) – Port-Based QinQ – Selective QinQ • Voice VLAN |
| Hozzáférés-jogosultsági lista (ACL) | • Time-based ACL • MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type • IP ACL -Source IP – Destination IP – Fragment – IP Protocol – TCP Flag – TCP/UDP Port – DSCP/IP TOS – User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy – Mirroring – Redirect – Rate Limit – QoS Remark • ACL apply to Port/VLAN |
| Biztonság | • IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode • 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| VEZÉRLÉS | |
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 – Trap/Inform – RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| EGYÉB JELLEMZŐK | |
|---|---|
| Tanúsítványok | CE, FCC, RoHS |
| Csomagolás tartalma | • SG3218XP-M2 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| Rendszerkövetelmény | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Környezet | • Operating Temperature: 0–50 ? (32–122 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
További információk
| Tömeg | 3,24 kg |
|---|---|
| Készlet |
Elérhető |
| Brand |
TP-Link |
