UBiQUiTi Vezetékes Router Gateway 4×2,5Gbit + 1x10Gbps SFP+ (LAN) + 1x10Gbit (SFP+/LAN) (WAN), Asztali – UXG-FIBER

Overview

Dimensions

212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2″)

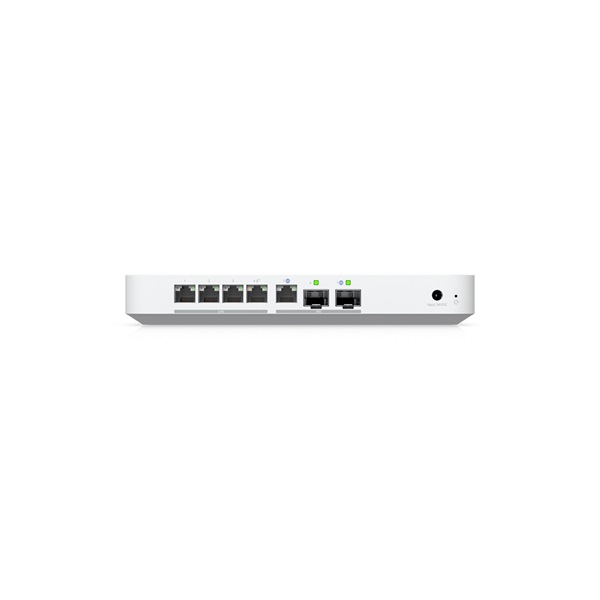

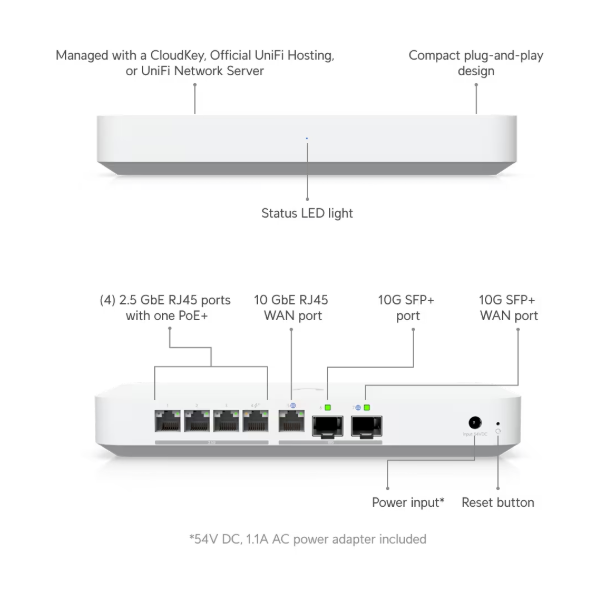

Default WAN Ports

(1) 10G SFP+ (1) 10 GbE RJ45

LAN Ports

(1) 10G SFP+ (4) 2.5 GbE RJ45

IDS/IPS Throughput

5 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

55,000+ With CyberSecure

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

4,000

Hardware

PoE Budget

30W

Max. PoE Wattage per Port by PSE

PoE+

30W

Voltage Range PoE Mode

50—57V

Max. Power Consumption

25W (Excluding PoE output)

Power Method

DC jack (54V DC/1.1A)

Power Supply

54V DC/1.1A (Adapter included)

Supported Voltage Range

100—240V AC

Processor

Quad-core ARM® Cortex®-A73 at 2.2 GHz

System Memory

2 GB

Weight

605 g (1.3 lb)

Enclosure Material

Polycarbonate

Management

Ethernet Bluetooth

LEDs

Ethernet

Yes

SFP+

Yes

System

Yes

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset
