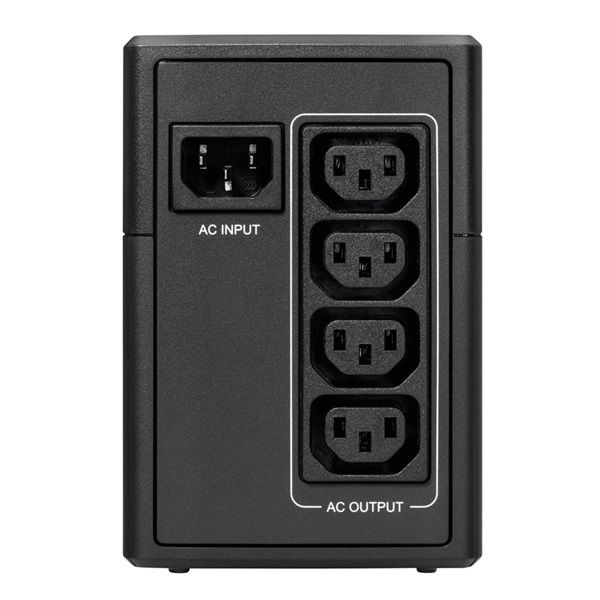

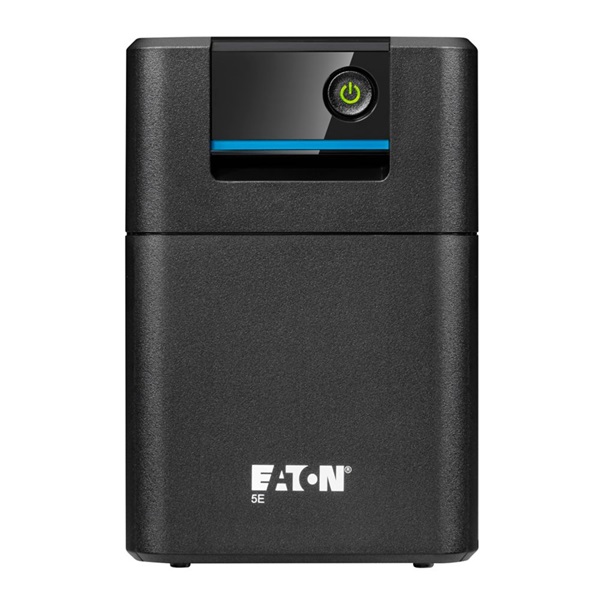

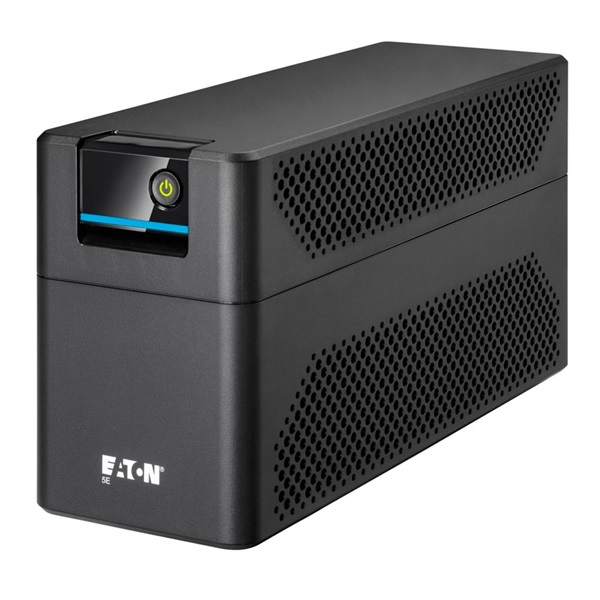

EATON UPS 5E550I, 5e Gen2, IEC, 550 VA, 300W, Input: C14, Outputs: (4) C13, Line-interaktív szünetmentes, AVR, torony
24 010 Ft
Kapcsolási mód: Line-interaktiv
Teljesítmény VA: 550,0000000
Rack-be szerelhető: Nincs
Beépített adatvonal-védelem: Van
Gyártó: EATON
Garancia: 2 év
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton 5E Gen2 UPS
CATALOG NUMBER
5E550I
PRODUCT LENGTH/DEPTH
288 mm
PRODUCT HEIGHT
148 mm
PRODUCT WIDTH
100 mm
PRODUCT WEIGHT
3.75 kg
WARRANTY
2 year
COMPLIANCES
CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3
TERMÉKJELLEMZŐK
SECONDARY FREQUENCY – MAX
60 Hz
WATTAGE
300W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
140 V
OUTPUT VOLTAGE – MAX
257 V
SECONDARY FREQUENCY – MIN
50 Hz
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
195 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
195-257 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-63 Hz
INTERNAL BYPASS
No
INPUT VOLTAGE – MAX
300 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
No
NUMBER OF OUTPUTS C13
4
OPERATING TEMPERATURE – MIN
0 °C
VA RATING
550 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(4) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
(2) IEC-IEC output cables
Quick start
Safety instructions
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
1
OPERATING TEMPERATURE – MAX
40 °C
VOLTAGE
230V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
RELATIVE HUMIDITY
0-90% non-condensing
OUTPUT APPARENT POWER
550 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
None
PRIMARY FREQUENCY – MIN
45 Hz
BATTERY RATING
12 V / 4.5 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
140-300 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
63 Hz
| Tömeg | 4,6 kg |
|---|---|
| Készlet |
Elérhető |
| Brand |
Eaton |
