| HARDWARE FEATURES |
| Interface |
1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button |
Reset |
| Power Supply |
• 802.3at PoE
• 12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US) |
| Power Consumption |
• EU: 13.5 W
• US: 14.7 W |
| Dimensions ( W x D x H ) |
6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type |
Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi |
| Mounting |

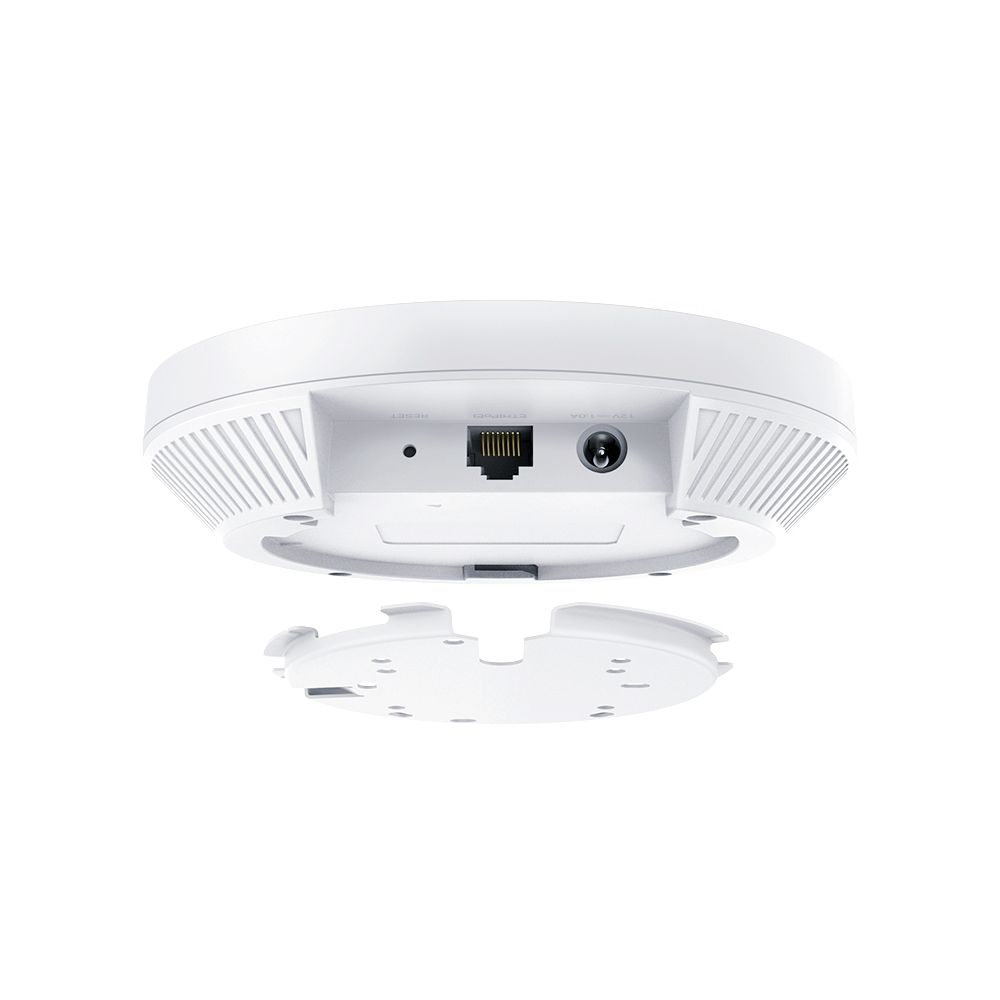

• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions |
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz) |
| MANAGEMENT |
| Omada App |
Yes |
| Centralized Management |
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
• EAP650
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment |
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
Technikai adatok:
Bridge funkció: Van
Frekvencia: 2.4 GHz és 5 GHz
Gyártó: TP-LINK
Rejtett SSID: Igen
Kültéri kivitel: Nem
Repeater funkció: Van
Sebesség: 2400Mbps
Szabvány: 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Kültéri kivitel: Nincs
